Free Energy Transformer: Breaking Up High Energy Carrier Standing Waves Through Telluric Carriers
Here is a free energy generator of the transformer type that was successfully manufactured and once sold:
However, most of them were made with technical errors that led to failure. The faulty construction is due to the academic training in schools that has affected the understanding of the "truth" of electricity. This leads to some minor errors and failures.
The basic principle of the Free Energy transformer is to lose (or eliminate, or exploit) the back emf generated from the secondary winding that rotates back into the primary winding. It is this back emf that reduces the current when the voltage is increased, it is also called Lenz's force in transformers.
Some more special techniques are to exploit the back emf, which increases the output power much more strongly than losing the back emf.
The famous solution is to let the back emf feedback through another branch on the transformer frame. This type of transformer was invented and tested by Thane Heins
Another famous solution is to use the Bifilar coil with its variations, to eliminate or delay the Lenz's force in the transformer. A version of the Bifilar coil consists of a pair of crossed wires that create a standing wave, and acts as a capacitor to store energy.
In this article, I introduce a solution using a variation of the Bifilar coil, which is a standing wave breaking free energy transformer.

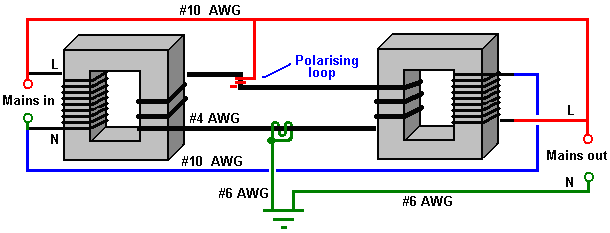

Here is the circuit diagram:
Two crossed coils, placed on two transformer frames, will create opposite voltages. It is like two harmonic oscillations of the same frequency are combined to create a standing wave.
Here is a diagram of two crossed coils numbered to explain:
Note:
Coils L2 and L3 are crossed.
Coils L1 and L4 are also crossed. You can see in the picture.
# Explanation:
When the voltage is applied at the input of L1, it generates a reverse electromotive force at L2 and reverses again at L3 (due to the crossed wires).
L3 is like the primary coil of the second transformer, increasing the voltage for coil L4. The reverse electromotive force at L4 is in the same direction as L2, that is, opposite to L1.
With the number of turns of L1 = L4 and the number of turns of L2 = L3
At that time, the voltage at L2 and L3 are opposite, creating a combined voltage graph in the form of a standing wave. At this time, there is no current on the wire. This is similar to the pair of coils L1 and L4.
If you forget about the standing wave, you can see the animation below:
What we need is to exploit the free energy (Overunity) at point L of coil L4.
At L4 and L1, we assume its standing wave equation is:
y = Q(x) = L1(x) + L4(x)
In fact, L1(x) and L4(x) are 180 degrees out of phase and have an effective value of energy (W) of W_L1(x) = W_L4(x).
Where x, y are voltages in Volts.
Setting up a coil of about 4 turns at point C will have a small inductance, carrying a potential oscillation of L*(x) with the current going to ground.
L*(x) will be combined with y = Q(x) = L1(x) + L4(x), but because it is a branch, it will be minus L*(x) when combined.
At this time, at point L of L4, the total oscillation will be:
y = Q(x) - L*(x) = L1(x) + L4(x) - L*(x) = F(x) = Free energy
At that point, L*(x) carries very small energy.
However, y = L1(x) + L4(x) - L*(x) will lose the standing wave expression.
The path of the voltage oscillation L*(x) branches as shown in the figure, which is the LABCD line
Originally, at C, there is an open circuit with a 4-turn coil, but because there is a Telluric current established due to the standing wave of L2 and L3. That is the reciprocity between the two inductors that establish the Telluric current. Therefore, there is a current running through point C to the ground, which is D.
Tesla's wireless power transmission technology uses this reciprocity. But because mainstream science does not study this Telluric current in depth, because they have already rejected Ether in physics. Rejecting Ether is an act of scientific fraud. However, this is a long story.
Telluric current exists underground, it is established by properly buried stakes to extract L*(x) at point L. Proper grounding technique is a very important factor in the design of this generator. I will present it in detail in the next section of this article.
Note: If the input is 1 unit of energy, as estimated, the output will be 2. At a very small L*(x) of 0.1, the output will be 2 - 0.1 = 1.9. However, the coil pairs L2-L3 and L1-L4 are charged as a capacitor, because they are Bifilar coils that act as capacitors, and they store the energy from the time of energizing L1, and then maintain this state thanks to the ground potential. Thus, the number 1.9 at the output is the smallest when L*(x) carries the energy of 0.1, the output is a much larger number. But this is a problem that experts do not want to reveal and also avoid having to explain.
# From the schematic circuit diagram to the actual circuit diagram.
The actual circuit needs to consider quantities with estimated or specific values, and also consider other technical factors. Below is a practical circuit diagram noting the important technique of grounding with properly buried metal stakes.
The above diagram needs to understand the convention that the pairs of coils cross each other. If only the above diagram, without understanding the convention, symbols, will lead to failure in manufacturing.
All information about the technical parameters is presented in this article: "Transformer Free energy decodes the frequency-mixed signal - Power From Circuits"
It is estimated that the construction of this generator is up to more than 2000 dollars, although it looks quite simple. But those are expensive materials and components. Currently, the manufacturing materials can be purchased quite cheaply in China.
Components for installation:
Toroidal Ferrite Core
AWG Conductor = Electric wire 220V Strand Copper Cable (AWG)
Long copper bar: Hexagon Hex Copper Bars Rods Long (used for grounding)
Inverter 3000W - 5000W
12V - 24V Battery
Battery Charger
Electrical Screw Terminal Block: Brass Junction Box Electrical Screw Terminal Block and Insulated Barrier Strip Wire Connector Connecter Electronic Cable Contact
Soldering Iron and Tin: Adjustable Temperature Electric Soldering Iron 110V/220V 60W Solder Iron Professional Tin Welder Heat Pencil Welding Repair Tool
Power Outlet: 2U Rack Mount PDU Power Strip Voltmeter Ammeter Power Energy Meter 14 Ways Extenison Socket Type-C+USB Surge Overload protector
Other installation components that arise can be found here: https://ultimate-energizer-guide.blogspot.com/p/electronic-components-for-radiant-energy.html
* Note: The grounding stakes consist of many copper bars buried deep under ground, with a depth of more than 1.5 meters. If the copper rods are not long enough, a hole can be dug to bury them. Basically, bury the copper rods vertically as deep as possible, and keep them moist. There are 60 copper rods in total, which are standardly placed to use Telluric as a carrier wave to transmit the energy L*(x). See the connection in the article I mentioned.
# Review and comments:
This transformer is also known as a device to trap electrons from the ground to create free energy. In fact, electrons are an illusion of theoretical physics, they are not real as elementary particles. Electrons do not exist, they are just dielectric induction units, which have values as a quantity calculated in Ether electric physics.
With cheap components, this Free Energy Transformer can now be made for less than $2000.
This is a precision generator and requires a rather elaborate grounding, requiring 60 copper rods for grounding. With proper design, this Free Energy Transformer will operate at a reported power of over 3000W. This device will be difficult for beginners, those with little experience and knowledge of electricity.
So I propose an easier solution:
+ Solution 1: Energy Saver Box as a secondary source: 👉 Electricity Saving Box - Top Energy Saving
This device does not reduce the electricity bill to zero as a standalone power source, just buy the right manufacturer to get a good device.
+ Solution 2: Homemade generators using only coils and electronic components, reducing electricity bills to zero, acting as an independent power source if invested further:
👉 Ancient Invention Generates Energy-On-Demand
It is a book with many blueprints for creating a generator for the home. The official website only presents one typical type, which is the improved Joule Thief circuit method.
The content of that book contains many potential methods for creating a power source for the whole business if you add knowledge about Ether electricity to improve. Therefore, it is a book for individuals and businesses that are struggling in the context of establishing a totalitarian world (NWO).
I wish you good luck and success in making a free energy transformer!
