In July 2013, two Brazilian men, Nilson Barbosa and Cleriston Leal, demonstrated a simple device which extracted more than 190 kilowatts of power from the ground. While many people have tried to replicate the Barbosa and Leal power generator design which draws power from the Earth, and failed. One man whose forum ID is “Clarence” read the relevant patents and knew immediately how the design works and what items in the patents are misdirection by Barbosa and Leal. He has built his own implementation of the circuit and it works perfectly. He has generously shared the relevant details. Please understand that what follows is not a description of where to start experimenting, but instead it is an actual working design. Build it as described and it will work. Build it differently and it won’t work. Clarence has this to say:

In the Barbosa and Leal patent they make a vague reference to the Lenz Law. It just so happens that this is the key to the whole device. On the overunity forum, a circuit diagram posted by member “ZeroZero” showed the exact and complete method of defeating the Lenz Law, although most forum members did not seem to understand the importance of the circuit. However, I knew immediately that Lenz’s Law was just another name for back-EMF. The Lenz Law effect is overcome by winding the single primary coil in a clockwise direction and the AWG #4 2.5 turn windings are wound on the bare core in an anti-clockwise direction and that totally negates the Lenz Law.

What does this achieve? It gets rid of the voltage component in the secondary windings, leaving only the amperage component! When you wind two toroids exactly the same using this method and connect them as shown below, you create a loop similar to a horseshoe magnet with a keeper on it and the amperage in the loop just goes on circulating round and round as shown by Ed Leedskalin. This is the same principle. The loop has the ability within itself to add unlimited amperage, instantaneously to the neutral green Ground Return wire accordingly as the load requires. The only limit to the available amperage is the current-handling capacity of the looped black wire.

You can touch the black wire loop connections with bare hands because as there is no voltage, there is no resulting shock. The connecting of the AWG #10 phase wire to the bottom loop wire only serves to orient the polarisation of the amperage.

The oriented spinning of the amperage in the loop induces the amperage needed by the load, into the Captor output. This little toroid can allow the loop to load an AWG #4 wire enough to melt it !!

The toroid primary wires Live to Live and Neutral to Neutral should be powered from the inverter by a separate circuit

Another separate circuit should be used with the Live connected to the bottom black looped wire in order to polarise it. The Neutral powers the input to ground.

The return ground rods are linked in a series loop and then, from a convenient ground rod to the green 2.5-turn loop around the black captor loop and then on to serve as the captor Neutral to the load.

You will know that you have enough ground rods when the Captor rms output voltage matches the rms voltage of the inverter, and then, you will probably have to add about another ten ground rods in order to keep the rms voltage of the Captor output from dropping. If the Captor rms output voltage drops – simple – add more ground rods. Please understand clearly that without sufficient ground rods, the apparatus just will not work. Here is a connection pattern where many 6-foot (1.8 m) long earthing rods are used:


The circuit diagram from ZeroZero shows this arrangement:


The direction of winding is vitally important as are the wire sizes. You will notice that the windings on the two magnetic frames are in opposite directions, and, the thick wire loop windings are both in opposite directions, and, the thick wire winds also oppose the thin wire winding on the same frame. Looking from above, the thick wire forms the shape of the numeral 8. The thick wire is AWG #4 with a diameter of 5.19 mm and the other core windings are AWG #10 with a diameter of 2.59 mm. The “polarising loop” is produced by taking a few turns of the AWG #10 wire around the insulation of the AWG #4 wire – the wires inside the cables are not actually joined together. The input and output are marked as “mains” as either 110V or 220V can be used, however, not actually fed from the mains as that would create a ground loop, but instead, the input is from an inverter. The earth wire is AWG #6 with a core diameter of 4.11 mm.

While the magnetic frames above are shown as rectangular, they are actually circular toroids (which was what Barbosa and Leal used but failed to mention). The ones used by Clarence are type TD300 1120 toroids with a diameter of 5.2 inches (132 mm) and a thickness of 2.3 inches (58 mm) each weighing 6.2 pounds (2.8 Kg) and available from http://www.tortran.com/standard_isolation_transformers.html. Clarence remarks that building this power generator replication is not cheap and he has spent more than US $2000 on his replication. Mind you, with an output power of 3 kW, this unit meets all of his household electrical requirements.

It is said that all builders should get a global or national Geomagnetic Map of their area before building, but Clarence says that he is in a “dead” area anyway, so there is probably little point in this as the number of earthing rods needed in your area is found by trial anyway, and knowing in advance does not change that number.

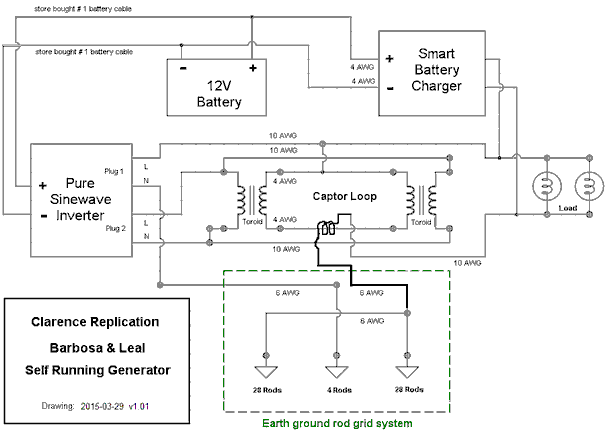

Another edition of the circuit diagram is:


Here are some pictures of Clarence’s successful build:





Components used were:

Toroids:
-----------
Bridgeport Magnetics :
Tortran - In Stock Standard Design Toroidal Isolation Transformers - Bridgeport Magnetics Group
Contact: Michael Kharaz E-mail: sales@bridgeportmagnetics.com
Tortran Division- Contact us - Bridgeport Magnetics Group
Custom ordered toroid (2 required):
TD300-1120-P, 300VA, 60Hz, Primary 120V, 160 degrees winding on toroid surface, no secondary winding - $125 USD each

Smart Battery Charger:
--------------------------------
Xantrex TrueCharge2 Battery Charger - 20Amp model
Website: Truecharge Battery Charger | Truecharge2 20A, 40A, 60A | Xantrex
Xantrex Dealers list:

Where to Buy:
Available from Amazon.com:
Amazon.com: Xantrex 804-1220-02 TRUECharge2 12V 20A Parallel Stackable Battery Charger: GPS & Navigation
Looks like the price is around $260 to $300 USD - depending where you order from.

Minimum recommended battery bank size for use with the 20Amp Charger model is 40 Ah

12V Pure Sinewave Power Inverter
-------------------------------------------------
AIMS POWER 3000 Watt 12VDC Pure Sine Wave Power Inverter - Model: PWRIG300012120S
Website: http://www.aimscorp.net/3000-Watt-Pu...-Inverter.html

Available from:

InvertersRUs - $699 USD http://www.invertersrus.com/aims-pwrig300012120s.html

Amazon - $799 USD http://www.amazon.com/AIMS-Power-PWR...+wave+inverter

Forum moderator “Level” who has done an excellent job of retrieving and displaying Clarence’s material here, says:

Stick to the battery and inverter method as the power source, as that is the only way you can avoid a ground loop to the mains electrical power system. The one exception is you might be able to avoid such a problem when powering from the mains if you use an isolation transformer, but isolation transformers can be expensive and have a limited capacity as well.

Caution: Also beware that an inverter with an output of 120 volts or 240 Volts can kill you if you touch live wires, so don't build such a setup if you don't understand such things. You need to take necessary safety precautions.

--------------------------------------------------


Review from Ultimate Energizer Guide:

This is a free energy transformer that decodes a standing wave signal from the ground current which is Telluric. In the standing wave state, it is a combination of two harmonic oscillations. Suppose the equation of the standing wave is y = R(x), where x is the input voltage.

The two component oscillations are P(x) and G(x).

That is, R(x) = P(x) + G(x).

At the output signal, if P(x) is subtracted by allowing the electrical signal P(x) to be mixed in by the carrier wave of another standing wave Telluric current, then at the output there is only G(x), which is the output voltage signal of the transformer.

G(x) is the free energy we are looking for.

This transformer is built quite elaborately in the standard grounding. If the grounding is not technically correct, the device will not work.

This may be the device that was used in large power plants. Because there is a technical grounding at that depth.

According to the assessment, building this transformer into a 3000 W generator costs more than 2000 dollars. Moreover, the technical requirements are very strict.

If you study free energy, you can take this as a very great project. It can be a starting point for other technologies.

We propose a simpler, practical solution that can be applied to your home quickly:

Revealed At Last:


🔹 Version from Nikola Tesla's Magnifying Transmitter
🔹 The "tension" for "electricity fractionation" to occur is the Earth's Potential Potential. To be precise, it is the tension of the Ether, and the electricity is the dynamic polarization of the Ether.
🔹 During "Electricity segment", the magnetic field collapses several times in short periods of time. That leads the voltage V = Φ/t to reach infinity (V  ) when t  0
  • V - The electromotive force which results from the production or consumption of the total magnetic induction Φ (Phi). The unit is the “Volt”. Where t is the time of magnetic field collapse from maximum to complete collapse.
  • Research scholars also call it Tesla's technology called Radiant Energy from Electronic Circuits, Impulse Technology.
Ultimate Energizer Guide

🔹 There are also many other plans to create free energy generators including Self Powered AC Generator.
